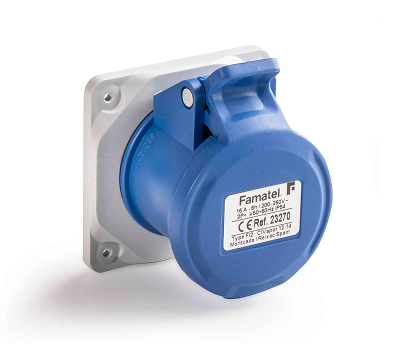

SpeedPro Panel Mount Socket

IP55 Mini junction Box; frame and base in ABS, Impact resistance IK08, UV protection, Halogen-free, easy and fast installation.

Categories: Panel Mount, Pin and Sleeve

SpeedPro Panel Mount Socket

STATUS

READY FOR SHIPMENT

PRICING

Bulk Quote Only

Engineering Endurance

SpeedPro Panel Mount Sockets are designed for industrial and marine use. Made out of high-quality ABS and Polyamide 6, they are built to withstand UV, salinity, and other forms of weathering. Configurations match the global standard IEC 60309 (formerly CEE 17).

KEY FEATURES

Polyamide 6 / ABS Material
Screw connection for wiring
IK08 Impact Resistance
-13°F to 104°F Operating Temperature

ENVIRONMENT

Industrial / Commercial / Marine

Pin Configuration

2P+T

3P+T

3P+N+T

Hour Position

Voltage

100-130 V

200-250 V

380-415 V

480-500 V

Color

🔴

🔵

⚫

🟡

Technical Specifications

METRIC & IMPERIAL

Amperage

16 A
32 A
63 A
125 A

SKU	Pin Configuration	Hour Position	Voltage	Color	Material of Contacts	Ingress Rating
23410	2P+T	6h	200-250 V	Black	Brass	IP44 / IP54
22130	2P+T	4h	100-130 V	Yellow	Brass	IP44 / IP54
22131	3P+T	4h	100-130 V	Yellow	Brass	IP44 / IP54
22134	3P+N+T	4h	100-130 V	Yellow	Brass	IP44 / IP54
22230	2P+T	6h	200-250 V	Blue	Brass	IP44 / IP54
22231	3P+T	9h	200-250 V	Blue	Brass	IP44 / IP54
22232	3P+N+T	9h	200-250 V	Blue	Brass	IP44 / IP54
22370	3P+T	6h	380-415 V	Red	Brass	IP44 / IP54
22371	3P+N+T	6h	380-415 V	Red	Brass	IP44 / IP54
22470	3P+T	7h	480-500 V	Black	Brass	IP44 / IP54
22471	3P+N+T	7h	480-500 V	Black	Brass	IP44 / IP54
22474	2P+T	7h	480-500 V	Black	Brass	IP44 / IP54
23130	2P+T	4h	100-130 V	Yellow	Brass	IP44 / IP54
23131	3P+T	4h	100-130 V	Yellow	Brass	IP44 / IP54
23134	3P+N+T	4h	100-130 V	Yellow	Brass	IP44 / IP54
23230	2P+T	6h	200-250 V	Blue	Brass	IP44 / IP54
23231	3P+T	9h	200-250 V	Blue	Brass	IP44 / IP54
23232	3P+N+T	9h	200-250 V	Blue	Brass	IP44 / IP54
23330	3P+T	6h	380-415 V	Red	Brass	IP44 / IP54
23331	3P+N+T	6h	380-415 V	Red	Brass	IP44 / IP54
23430	3P+T	7h	480-500 V	Black	Brass	IP44 / IP54
23431	3P+N+T	7h	480-500 V	Black	Brass	IP44 / IP54
23434	2P+T	7h	480-500 V	Black	Brass	IP44 / IP54
24130	2P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24131	3P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24134	3P+N+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24170	2P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24171	3P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24175	3P+N+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24230	2P+T	6h	200-250 V	Blue	Brass	IP66 / IP67
24231	3P+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24232	3P+N+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24270	2P+T	6h	200-250 V	Blue	Brass	IP66 / IP67
24271	3P+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24272	3P+N+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24330	3P+T	6h	380-415 V	Red	Brass	IP66 / IP67
24331	3P+N+T	6h	380-415 V	Red	Brass	IP66 / IP67
24370	3P+T	6h	380-415 V	Red	Brass	IP66 / IP67
24371	3P+N+T	6h	380-415 V	Red	Brass	IP66 / IP67
24430	3P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24431	3P+N+T	7h	480-500 V	Black	Brass	IP66 / IP67
24434	2P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24470	3P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24471	3P+N+T	7h	480-500 V	Black	Brass	IP66 / IP67
24474	2P+T	7h	480-500 V	Black	Brass	IP66 / IP67

View all 45 SKUs →

SKU	Pin Configuration	Hour Position	Voltage	Color	Material of Contacts	Ingress Rating
24339	3P+T	3h	380-440 V	Red	Brass	IP66 / IP67
22132	2P+T	4h	100-130 V	Yellow	Brass	IP44 / IP54
22133	3P+T	4h	100-130 V	Yellow	Brass	IP44 / IP54
22135	3P+N+T	4h	100-130 V	Yellow	Brass	IP44 / IP54
22233	2P+T	6h	200-250 V	Blue	Brass	IP44 / IP54
22234	3P+T	9h	200-250 V	Blue	Brass	IP44 / IP54
22235	3P+N+T	9h	200-250 V	Blue	Brass	IP44 / IP54
22372	3P+T	6h	380-415 V	Red	Brass	IP44 / IP54
22373	3P+N+T	6h	380-415 V	Red	Brass	IP44 / IP54
22375	2P+T	9h	380-415 V	Red	Brass	IP44 / IP54
22472	3P+T	7h	480-500 V	Black	Brass	IP44 / IP54
22473	3P+N+T	7h	480-500 V	Black	Brass	IP44 / IP54
22475	2P+T	7h	480-500 V	Black	Brass	IP44 / IP54
23132	2P+T	4h	100-130 V	Yellow	Brass	IP44 / IP54
23133	3P+T	4h	100-130 V	Yellow	Brass	IP44 / IP54
23135	3P+N+T	4h	100-130 V	Yellow	Brass	IP44 / IP54
23233	2P+T	6h	200-250 V	Blue	Brass	IP44 / IP54
23234	3P+T	9h	200-250 V	Blue	Brass	IP44 / IP54
23235	3P+N+T	9h	200-250 V	Blue	Brass	IP44 / IP54
23332	3P+T	6h	380-415 V	Red	Brass	IP44 / IP54
23333	3P+N+T	6h	380-415 V	Red	Brass	IP44 / IP54
23336	2P+T	9h	380-415 V	Red	Brass	IP44 / IP54
23432	3P+T	7h	480-500 V	Black	Brass	IP44 / IP54
23433	3P+N+T	7h	480-500 V	Black	Brass	IP44 / IP54
23435	2P+T	7h	480-500 V	Black	Brass	IP44 / IP54
24132	2P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24133	3P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24135	3P+N+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24172	2P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24173	3P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24176	3P+N+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24233	2P+T	6h	200-250 V	Blue	Brass	IP66 / IP67
24234	3P+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24240	3P+N+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24273	2P+T	6h	200-250 V	Blue	Brass	IP66 / IP67
24275	3P+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24279	3P+N+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24332	3P+T	6h	380-415 V	Red	Brass	IP66 / IP67
24333	3P+N+T	6h	380-415 V	Red	Brass	IP66 / IP67
24341	2P+T	9h	380-415 V	Red	Brass	IP66 / IP67
24372	3P+T	6h	380-415 V	Red	Brass	IP66 / IP67
24373	3P+N+T	6h	380-415 V	Red	Brass	IP66 / IP67
24378	2P+T	9h	380-415 V	Red	Brass	IP66 / IP67
24432	3P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24433	3P+N+T	7h	480-500 V	Black	Brass	IP66 / IP67
24441	2P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24472	3P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24473	3P+N+T	7h	480-500 V	Black	Brass	IP66 / IP67
24475	2P+T	7h	480-500 V	Black	Brass	IP66 / IP67

View all 49 SKUs →

SKU	Pin Configuration	Hour Position	Voltage	Color	Material of Contacts	Ingress Rating
22374	3P+T	6h	380-415 V	Red	Brass	IP44 / IP54
23334	3P+T	6h	380-415 V	Red	Brass	IP44 / IP54
24137	2P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24138	3P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24141	3P+N+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24180	2P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24181	3P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24182	3P+N+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24235	2P+T	6h	200-250 V	Blue	Brass	IP66 / IP67
24236	3P+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24238	3P+N+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24280	2P+T	6h	200-250 V	Blue	Brass	IP66 / IP67
24281	3P+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24282	3P+N+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24334	3P+T	6h	380-415 V	Red	Brass	IP66 / IP67
24335	3P+N+T	6h	380-415 V	Red	Brass	IP66 / IP67
24336	2P+T	9h	380-415 V	Red	Brass	IP66 / IP67
24374	3P+N+T	6h	380-415 V	Red	Brass	IP66 / IP67
24375	3P+T	6h	380-415 V	Red	Brass	IP66 / IP67
24380	2P+T	9h	380-415 V	Red	Brass	IP66 / IP67
24437	3P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24438	3P+N+T	7h	480-500 V	Black	Brass	IP66 / IP67
24442	2P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24480	2P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24481	3P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24482	3P+N+T	7h	480-500 V	Black	Brass	IP66 / IP67

View all 26 SKUs →

SKU	Pin Configuration	Hour Position	Voltage	Color	Material of Contacts	Ingress Rating
24136	2P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24140	3P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24142	3P+N+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24174	2P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24184	3P+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24185	3P+N+T	4h	100-130 V	Yellow	Brass	IP66 / IP67
24237	2P+T	6h	200-250 V	Blue	Brass	IP66 / IP67
24239	3P+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24274	2P+T	6h	200-250 V	Blue	Brass	IP66 / IP67
24277	3P+N+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24284	3P+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24285	3P+N+T	9h	200-250 V	Blue	Brass	IP66 / IP67
24337	3P+T	6h	380-415 V	Red	Brass	IP66 / IP67
24338	3P+N+T	6h	380-415 V	Red	Brass	IP66 / IP67
24342	2P+T	9h	380-415 V	Red	Brass	IP66 / IP67
24376	3P+T	6h	380-415 V	Red	Brass	IP66 / IP67
24377	3P+N+T	6h	380-415 V	Red	Brass	IP66 / IP67
24381	2P+T	9h	380-415 V	Red	Brass	IP66 / IP67
24436	3P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24440	3P+N+T	7h	480-500 V	Black	Brass	IP66 / IP67
24443	2P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24483	2P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24484	3P+T	7h	480-500 V	Black	Brass	IP66 / IP67
24485	3P+N+T	7h	480-500 V	Black	Brass	IP66 / IP67

View all 24 SKUs →

Connection System

Screw connection

Material of Contacts

Nickel-plated brass

MATERIAL BASE

PA6

Ingress Rating

IP66/67

CERTIFICATE

VDE; CE; Low Voltage Directive 2014/35/EU; RoHS 2011/65/EU

STANDARDS

IEC/EN 60309-1; IEC/EN 60309-2

IMPACT RESISTANCE

IK08
