MAGNA IP65 ABS Enclosure with Adjustable Backplate, 15.7 x 23.6 x 7.8″

Superior level of protection from corrosion and extreme environment, high impact resistance IK08.

MAGNA IP65 ABS Enclosure with Adjustable Backplate, 15.7 x 23.6 x 7.8″

STATUS
READY FOR SHIPMENT
PRICING
Bulk Quote Only
Engineering Endurance

MAGNA enclosure is available in 7 different sizes, of up to a maximum size of 1000x750mm. Designed for application in the residential and industrial sector due to its versatility and degree of protection against external agents. They incorporate a metal plate by default, but can support an optional DIN rail for mountable electronics. Its triangular key opening system allows quick and easy access to the interior of the installation.

KEY FEATURES

  • Hinged Door with Lock
  • IP65
  • Galvanized Plate Included
  • Wall Mount Accessories included

ENVIRONMENT

Indoor / Outdoor / Residential / Commercial / Industrial

Technical Specifications

METRIC & IMPERIAL

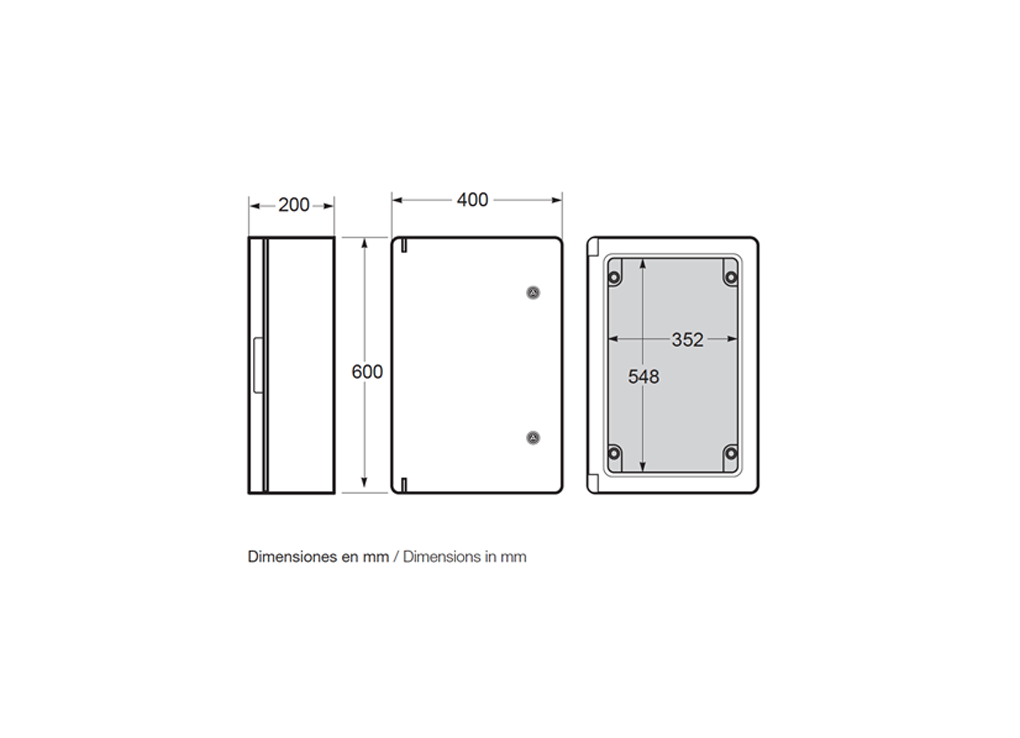

DIMENSIONS (External)

15.7 x 23.6 x 7.8″

DIMENSIONS (Internal)

21.6 x 13.9 x 7.6″

MATERIAL BASE

ABS

MATERIAL DOOR

ABS

PROTECTION LEVEL

IP65

IMPACT RESISTANCE

IK08

STANDARDS

IEC/EN 62208, IEC/EN 61439-1, IEC/EN 61439-3

CERTIFICATION

CE

Technical Resources

Access complete data sheets and certifications for project documentation.
