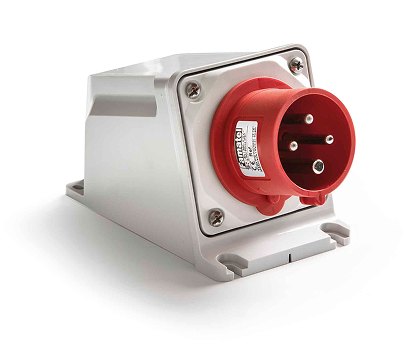

SpeedPro Surface Mount Plug

IP55 Mini junction Box; frame and base in ABS, Impact resistance IK08, UV protection, Halogen-free, easy and fast installation.

Categories: Pin and Sleeve, Surface Mount

SpeedPro Surface Mount Plug

STATUS

READY FOR SHIPMENT

PRICING

Bulk Quote Only

Engineering Endurance

SpeedPro Surface Mount Plugs are designed for industrial and marine use. Made out of high-quality ABS and Polyamide 6, they are built to withstand UV, salinity, and other forms of weathering. Configurations match the global standard IEC 60309 (formerly CEE 17).

KEY FEATURES

Polyamide 6 / ABS Material
Screw connection for wiring
IK08 Impact Resistance
-13°F to 104°F Operating Temperature

ENVIRONMENT

Industrial / Commercial / Marine

Pin Configuration

2P+T

3P+T

3P+N+T

Hour Position

Voltage

100-130 V

200-250 V

380-415 V

480-500 V

Color

🔴

🔵

⚫

🟡

Technical Specifications

METRIC & IMPERIAL

Amperage

16 A
32 A
63 A
125 A

SKU	Pin Configuration	Hour Position	Voltage	Color	External Dimensions (in)	Ingress Rating
13150	2P+T	4h	100-130 V	Yellow	A 2.60 x B 3.39 x E 3.54 in	IP44/54
13151	3P+T	4h	100-130 V	Yellow	A 2.60 x B 3.39 x E 3.54 in	IP44/54
13154	3P+N+T	4h	100-130 V	Yellow	A 2.68 x B 3.39 x E 3.54 in	IP44/54
13196	2P+T	4h	100-130 V	Yellow	A 4.25 x B 4.33 x C 2.36 in	IP44/54
13197	3P+T	4h	100-130 V	Yellow	A 4.29 x B 4.41 x C 2.68 in	IP44/54
13198	3P+N+T	4h	100-130 V	Yellow	A 4.61 x B 4.57 x C 2.99 in	IP44/54
13250	2P+T	6h	200-250 V	Blue	A 2.60 x B 3.39 x E 3.54 in	IP44/54
13251	3P+T	9h	200-250 V	Blue	A 2.60 x B 3.39 x E 3.54 in	IP44/54
13252	3P+N+T	9h	200-250 V	Blue	A 2.68 x B 3.39 x E 3.54 in	IP44/54
13297	2P+T	6h	200-250 V	Blue	A 4.25 x B 4.33 x C 2.36 in	IP44/54
13298	3P+T	9h	200-250 V	Blue	A 4.29 x B 4.41 x C 2.68 in	IP44/54
13299	3P+N+T	9h	200-250 V	Blue	A 4.61 x B 4.57 x C 2.99 in	IP44/54
13350	3P+T	6h	380-415 V	Red	A 2.60 x B 3.39 x E 3.54 in	IP44/54
13351	3P+N+T	6h	380-415 V	Red	A 2.68 x B 3.39 x E 3.54 in	IP44/54
13354	2P+T	9h	380-415 V	Red	A 2.60 x B 3.39 x E 3.54 in	IP44/54
13395	3P+N+T	6h	380-415 V	Red	A 4.61 x B 4.57 x C 2.99 in	IP44/54
13398	2P+T	9h	380-415 V	Red	A 4.25 x B 4.33 x C 2.36 in	IP44/54
13399	3P+T	6h	380-415 V	Red	A 4.29 x B 4.41 x C 2.68 in	IP44/54
13450	3P+T	7h	480-500 V	Black	A 2.60 x B 3.39 x E 3.54 in	IP44/54
13451	3P+N+T	7h	480-500 V	Black	A 2.68 x B 3.39 x E 3.54 in	IP44/54
13454	2P+T	7h	480-500 V	Black	A 2.60 x B 3.39 x E 3.54 in	IP44/54
13481	2P+T	7h	480-500 V	Black	A 4.25 x B 4.33 x C 2.36 in	IP44/54
13482	3P+T	7h	480-500 V	Black	A 4.29 x B 4.41 x C 2.68 in	IP44/54
13483	3P+N+T	7h	480-500 V	Black	A 4.61 x B 4.57 x C 2.99 in	IP44/54
13761	3P+T	6h	380-415 V	Red	A 3.19 x B 3.82 x C 5.94 in (F 1.89 in)	IP44/54
14150	2P+T	4h	100-130 V	Yellow	A 2.60 x B 3.39 x F 4.72 in	IP66/67
14151	3P+T	4h	100-130 V	Yellow	A 2.60 x B 3.39 x F 4.72 in	IP66/67
14159	3P+N+T	4h	100-130 V	Yellow	A 2.60 x B 3.39 x F 4.72 in	IP66/67
14250	2P+T	6h	200-250 V	Blue	A 2.60 x B 3.39 x F 4.72 in	IP66/67
14251	3P+T	9h	200-250 V	Blue	A 2.60 x B 3.39 x F 4.72 in	IP66/67
14252	3P+N+T	9h	200-250 V	Blue	A 2.60 x B 3.39 x F 4.72 in	IP66/67
14350	3P+T	6h	380-415 V	Red	A 2.60 x B 3.39 x F 4.72 in	IP66/67
14351	3P+N+T	6h	380-415 V	Red	A 2.60 x B 3.39 x F 4.72 in	IP66/67
14363	2P+T	9h	380-415 V	Red	A 2.60 x B 3.39 x F 4.72 in	IP66/67
14450	3P+T	7h	480-500 V	Black	A 2.60 x B 3.39 x F 4.72 in	IP66/67
14451	3P+N+T	7h	480-500 V	Black	A 2.60 x B 3.39 x F 4.72 in	IP66/67
14456	2P+T	7h	480-500 V	Black	A 2.60 x B 3.39 x F 4.72 in	IP66/67

View all 37 SKUs →

SKU	Pin Configuration	Hour Position	Voltage	Color	External Dimensions (in)	Ingress Rating
13152	2P+T	4h	100-130 V	Yellow	A 3.54 x B 3.94 x E 4.33 in	IP44/54
13153	3P+T	4h	100-130 V	Yellow	A 3.54 x B 3.94 x E 4.33 in	IP44/54
13155	3P+N+T	4h	100-130 V	Yellow	A 3.54 x B 3.94 x E 4.33 in	IP44/54
13199	2P+T	4h	100-130 V	Yellow	A 5.00 x B 4.65 x C 3.19 in	IP44/54
13207	3P+N+T	4h	100-130 V	Yellow	A 5.12 x B 4.76 x C 3.35 in	IP44/54
13208	3P+T	4h	100-130 V	Yellow	A 5.00 x B 4.65 x C 3.19 in	IP44/54
13253	2P+T	6h	200-250 V	Blue	A 3.54 x B 3.94 x E 4.33 in	IP44/54
13254	3P+T	9h	200-250 V	Blue	A 3.54 x B 3.94 x E 4.33 in	IP44/54
13255	3P+N+T	9h	200-250 V	Blue	A 3.54 x B 3.94 x E 4.33 in	IP44/54
13306	2P+T	6h	200-250 V	Blue	A 5.00 x B 4.65 x C 3.19 in	IP44/54
13307	3P+T	9h	200-250 V	Blue	A 5.00 x B 4.65 x C 3.19 in	IP44/54
13308	3P+N+T	9h	200-250 V	Blue	A 5.12 x B 4.76 x C 3.35 in	IP44/54
13352	3P+T	6h	380-415 V	Red	A 3.54 x B 3.94 x E 4.33 in	IP44/54
13353	3P+N+T	6h	380-415 V	Red	A 3.54 x B 3.94 x E 4.33 in	IP44/54
13355	2P+T	9h	380-415 V	Red	A 3.54 x B 3.94 x E 4.33 in	IP44/54
13396	3P+T	6h	380-415 V	Red	A 5.00 x B 4.65 x C 3.19 in	IP44/54
13397	3P+N+T	6h	380-415 V	Red	A 5.12 x B 4.76 x C 3.35 in	IP44/54
13407	2P+T	9h	380-415 V	Red	A 5.00 x B 4.65 x C 3.19 in	IP44/54
13452	3P+T	7h	480-500 V	Black	A 3.54 x B 3.94 x E 4.33 in	IP44/54
13453	3P+N+T	7h	480-500 V	Black	A 3.54 x B 3.94 x E 4.33 in	IP44/54
13455	2P+T	7h	480-500 V	Black	A 3.54 x B 3.94 x E 4.33 in	IP44/54
13484	2P+T	7h	480-500 V	Black	A 5.00 x B 4.65 x C 3.19 in	IP44/54
13485	3P+T	7h	480-500 V	Black	A 5.00 x B 4.65 x C 3.19 in	IP44/54
13486	3P+N+T	7h	480-500 V	Black	A 5.12 x B 4.76 x C 3.35 in	IP44/54
14152	2P+T	4h	100-130 V	Yellow	A 3.54 x B 3.94 x F 6.30 in	IP66/67
14153	3P+T	4h	100-130 V	Yellow	A 3.54 x B 3.94 x F 6.30 in	IP66/67
14160	3P+N+T	4h	100-130 V	Yellow	A 3.54 x B 3.94 x F 6.30 in	IP66/67
14253	2P+T	6h	200-250 V	Blue	A 3.54 x B 3.94 x F 6.30 in	IP66/67
14254	3P+T	9h	200-250 V	Blue	A 3.54 x B 3.94 x F 6.30 in	IP66/67
14259	3P+N+T	9h	200-250 V	Blue	A 3.54 x B 3.94 x F 6.30 in	IP66/67
14352	3P+T	6h	380-415 V	Red	A 3.54 x B 3.94 x F 6.30 in	IP66/67
14353	3P+N+T	6h	380-415 V	Red	A 3.54 x B 3.94 x F 6.30 in	IP66/67
14364	2P+T	9h	380-415 V	Red	A 3.54 x B 3.94 x F 6.30 in	IP66/67
14452	3P+T	7h	480-500 V	Black	A 3.54 x B 3.94 x F 6.30 in	IP66/67
14453	3P+N+T	7h	480-500 V	Black	A 3.54 x B 3.94 x F 6.30 in	IP66/67
14457	2P+T	7h	480-500 V	Black	A 3.54 x B 3.94 x F 6.30 in	IP66/67

View all 36 SKUs →

SKU	Pin Configuration	Hour Position	Voltage	Color	External Dimensions (in)	Ingress Rating
14354	3P+T	6h	380-415 V	Red	W 2.32 x H 3.95 x L 4.59 in	IP66/67
14355	3P+N+T	6h	380-415 V	Red	W 2.32 x H 3.95 x L 4.59 in	IP66/67
14358	2P+T	9h	380-415 V	Red	W 2.32 x H 3.95 x L 4.59 in	IP66/67
14505	2P+T	4h	100-130 V	Yellow	W 2.32 x H 3.95 x L 4.59 in	IP66/67
14506	3P+T	4h	100-130 V	Yellow	W 2.32 x H 3.95 x L 4.59 in	IP66/67
14510	3P+N+T	4h	100-130 V	Yellow	W 2.32 x H 3.95 x L 4.59 in	IP66/67
14665	2P+T	6h	200-250 V	Blue	W 2.32 x H 3.95 x L 4.59 in	IP66/67
14666	3P+T	9h	200-250 V	Blue	W 2.32 x H 3.95 x L 4.59 in	IP66/67
14669	3P+N+T	9h	200-250 V	Blue	W 2.32 x H 3.95 x L 4.59 in	IP66/67
14864	3P+T	7h	480-500 V	Black	W 2.32 x H 3.95 x L 4.59 in	IP66/67
14866	3P+N+T	7h	480-500 V	Black	W 2.32 x H 3.95 x L 4.59 in	IP66/67
14869	2P+T	7h	480-500 V	Black	W 2.32 x H 3.95 x L 4.59 in	IP66/67

View all 12 SKUs →

SKU	Pin Configuration	Hour Position	Voltage	Color	External Dimensions (in)	Ingress Rating
14154	2P+T	4h	100-130 V	Yellow	L 9.45 x W 6.38 x H 8.39 in	IP66/67
14256	2P+T	6h	200-250 V	Blue	L 9.45 x W 6.38 x H 8.39 in	IP66/67
14380	3P+T	6h	380-415 V	Red	L 9.45 x W 6.38 x H 8.39 in	IP66/67
14381	3P+N+T	6h	380-415 V	Red	L 9.45 x W 6.38 x H 8.39 in	IP66/67
14382	2P+T	9h	380-415 V	Red	L 9.45 x W 6.38 x H 8.39 in	IP66/67
14508	3P+T	4h	100-130 V	Yellow	L 9.45 x W 6.38 x H 8.39 in	IP66/67
14509	3P+N+T	4h	100-130 V	Yellow	L 9.45 x W 6.38 x H 8.39 in	IP66/67
14667	3P+T	9h	200-250 V	Blue	L 9.45 x W 6.38 x H 8.39 in	IP66/67
14668	3P+N+T	9h	200-250 V	Blue	L 9.45 x W 6.38 x H 8.39 in	IP66/67
14867	3P+T	7h	480-500 V	Black	L 9.45 x W 6.38 x H 8.39 in	IP66/67
14868	3P+N+T	7h	480-500 V	Black	L 9.45 x W 6.38 x H 8.39 in	IP66/67
14870	2P+T	7h	480-500 V	Black	L 9.45 x W 6.38 x H 8.39 in	IP66/67

View all 12 SKUs →

Connection System

Screw connection

Material of Contacts

Nickel-plated brass

MATERIAL BASE

PA6

Ingress Rating

IP66/67

CERTIFICATE

VDE; CE; Low Voltage Directive 2014/35/EU; RoHS 2011/65/EU

STANDARDS

IEC/EN 60309-1; IEC/EN 60309-2

IMPACT RESISTANCE

IK08
