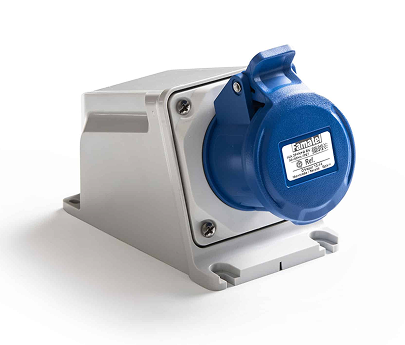

SpeedPro Surface Mount Socket

IP55 Mini junction Box; frame and base in ABS, Impact resistance IK08, UV protection, Halogen-free, easy and fast installation.

Categories: Pin and Sleeve, Surface Mount

SpeedPro Surface Mount Socket

STATUS

READY FOR SHIPMENT

PRICING

Bulk Quote Only

Engineering Endurance

SpeedPro Surface Mount Sockets are designed for industrial and marine use. Made out of high-quality ABS and Polyamide 6, they are built to withstand UV, salinity, and other forms of weathering. Configurations match the global standard IEC 60309 (formerly CEE 17).

KEY FEATURES

Polyamide 6 / ABS Material
Screw connection for wiring
IK08 Impact Resistance
-13°F to 104°F Operating Temperature

ENVIRONMENT

Industrial / Commercial / Marine

Pin Configuration

2P+T

3P+T

3P+N+T

Hour Position

Voltage

100-130 V

200-250 V

380-415 V

480-500 V

Color

🔴

🔵

⚫

🟡

Technical Specifications

METRIC & IMPERIAL

Amperage

16 A
32 A
63 A
125 A

SKU	Pin Configuration	Hour Position	Voltage	Color	Material of Contacts	Ingress Rating
23000	16/32 A socket base	N/A	N/A	Grey	N/A	N/A
23150	2P+T	4h	100-130 V	Yellow	Brass	IP44/54
23151	3P+T	4h	100-130 V	Yellow	Brass	IP44/54
23154	3P+N+T	4h	100-130 V	Yellow	Brass	IP44/54
23190	2P+T	4h	100-130 V	Yellow	Brass	IP44/54
23191	3P+T	4h	100-130 V	Yellow	Brass	IP44/54
23194	3P+N+T	4h	100-130 V	Yellow	Brass	IP44/54
23196	2P+T	4h	100-130 V	Yellow	Brass	IP44/54
23197	3P+T	4h	100-130 V	Yellow	Brass	IP44/54
23198	3P+N+T	4h	100-130 V	Yellow	Brass	IP44/54
23250	2P+T	6h	200-250 V	Blue	Brass	IP44/54
23251	3P+T	9h	200-250 V	Blue	Brass	IP44/54
23252	3P+N+T	9h	200-250 V	Blue	Brass	IP44/54
23290	2P+T	6h	200-250 V	Blue	Brass	IP44/54
23291	3P+T	9h	200-250 V	Blue	Brass	IP44/54
23295	3P+N+T	9h	200-250 V	Blue	Brass	IP44/54
23297	2P+T	6h	200-250 V	Blue	Brass	IP44/54
23298	3P+T	9h	200-250 V	Blue	Brass	IP44/54
23299	3P+N+T	9h	200-250 V	Blue	Brass	IP44/54
23350	3P+T	6h	380-415 V	Red	Brass	IP44/54
23351	3P+N+T	6h	380-415 V	Red	Brass	IP44/54
23354	2P+T	9h	380-415 V	Red	Brass	IP44/54
23390	3P+T	6h	380-415 V	Red	Brass	IP44/54
23391	3P+N+T	6h	380-415 V	Red	Brass	IP44/54
23395	3P+N+T	6h	380-415 V	Red	Brass	IP44/54
23398	2P+T	9h	380-415 V	Red	Brass	IP44/54
23399	3P+T	6h	380-415 V	Red	Brass	IP44/54
23406	2P+T	9h	380-415 V	Red	Brass	IP44/54
23450	3P+T	7h	480-500 V	Black	Brass	IP44/54
23451	3P+N+T	7h	480-500 V	Black	Brass	IP44/54
23454	2P+T	7h	480-500 V	Black	Brass	IP44/54
23481	2P+T	7h	480-500 V	Black	Brass	IP44/54
23482	3P+T	7h	480-500 V	Black	Brass	IP44/54
23483	3P+N+T	7h	480-500 V	Black	Brass	IP44/54
23490	3P+T	7h	480-500 V	Black	Brass	IP44/54
23491	3P+N+T	7h	480-500 V	Black	Brass	IP44/54
23494	2P+T	7h	480-500 V	Black	Brass	IP44/54
24150	2P+T	4h	100-130 V	Yellow	Brass	IP66/67
24151	3P+T	4h	100-130 V	Yellow	Brass	IP66/67
24154	3P+N+T	4h	100-130 V	Yellow	Brass	IP66/67
24190	2P+T	4h	100-130 V	Yellow	Brass	IP66/67
24191	3P+T	4h	100-130 V	Yellow	Brass	IP66/67
24198	3P+N+T	4h	100-130 V	Yellow	Brass	IP66/67
24250	2P+T	6h	200-250 V	Blue	Brass	IP66/67
24251	3P+T	9h	200-250 V	Blue	Brass	IP66/67
24252	3P+N+T	9h	200-250 V	Blue	Brass	IP66/67
24290	2P+T	6h	200-250 V	Blue	Brass	IP66/67
24291	3P+T	9h	200-250 V	Blue	Brass	IP66/67
24295	3P+N+T	9h	200-250 V	Blue	Brass	IP66/67
24350	3P+T	6h	380-415 V	Red	Brass	IP66/67
24351	3P+N+T	6h	380-415 V	Red	Brass	IP66/67
24354	2P+T	9h	380-415 V	Red	Brass	IP66/67
24390	3P+T	6h	380-415 V	Red	Brass	IP66/67
24391	3P+N+T	6h	380-415 V	Red	Brass	IP66/67
24399	2P+T	9h	380-415 V	Red	Brass	IP66/67
24450	3P+T	7h	480-500 V	Black	Brass	IP66/67
24451	3P+N+T	7h	480-500 V	Black	Brass	IP66/67
24454	2P+T	7h	480-500 V	Black	Brass	IP66/67
24490	3P+T	7h	480-500 V	Black	Brass	IP66/67
24491	3P+N+T	7h	480-500 V	Black	Brass	IP66/67
24494	2P+T	7h	480-500 V	Black	Brass	IP66/67

View all 61 SKUs →

SKU	Pin Configuration	Hour Position	Voltage	Color	Material of Contacts	Ingress Rating
24398	3P+T	3h	380-440 V	Red	Brass	IP66/67
23152	2P+T	4h	100-130 V	Yellow	Brass	IP44/54
23153	3P+T	4h	100-130 V	Yellow	Brass	IP44/54
23155	3P+N+T	4h	100-130 V	Yellow	Brass	IP44/54
23192	2P+T	4h	100-130 V	Yellow	Brass	IP44/54
23193	3P+T	4h	100-130 V	Yellow	Brass	IP44/54
23195	3P+N+T	4h	100-130 V	Yellow	Brass	IP44/54
23199	2P+T	4h	100-130 V	Yellow	Brass	IP44/54
23206	3P+T	4h	100-130 V	Yellow	Brass	IP44/54
23207	3P+N+T	4h	100-130 V	Yellow	Brass	IP44/54
23253	2P+T	6h	200-250 V	Blue	Brass	IP44/54
23254	3P+T	9h	200-250 V	Blue	Brass	IP44/54
23255	3P+N+T	9h	200-250 V	Blue	Brass	IP44/54
23292	2P+T	6h	200-250 V	Blue	Brass	IP44/54
23293	3P+T	9h	200-250 V	Blue	Brass	IP44/54
23296	3P+N+T	9h	200-250 V	Blue	Brass	IP44/54
23306	2P+T	6h	200-250 V	Blue	Brass	IP44/54
23307	3P+T	9h	200-250 V	Blue	Brass	IP44/54
23308	3P+N+T	9h	200-250 V	Blue	Brass	IP44/54
23352	3P+T	6h	380-415 V	Red	Brass	IP44/54
23353	3P+N+T	6h	380-415 V	Red	Brass	IP44/54
23355	2P+T	9h	380-415 V	Red	Brass	IP44/54
23392	3P+T	6h	380-415 V	Red	Brass	IP44/54
23393	3P+N+T	6h	380-415 V	Red	Brass	IP44/54
23394	2P+T	9h	380-415 V	Red	Brass	IP44/54
23396	3P+T	6h	380-415 V	Red	Brass	IP44/54
23397	3P+N+T	6h	380-415 V	Red	Brass	IP44/54
23407	2P+T	9h	380-415 V	Red	Brass	IP44/54
23452	3P+T	7h	480-500 V	Black	Brass	IP44/54
23453	3P+N+T	7h	480-500 V	Black	Brass	IP44/54
23455	2P+T	7h	480-500 V	Black	Brass	IP44/54
23484	2P+T	7h	480-500 V	Black	Brass	IP44/54
23485	3P+T	7h	480-500 V	Black	Brass	IP44/54
23486	3P+N+T	7h	480-500 V	Black	Brass	IP44/54
23492	3P+T	7h	480-500 V	Black	Brass	IP44/54
23493	3P+N+T	7h	480-500 V	Black	Brass	IP44/54
23495	2P+T	7h	480-500 V	Black	Brass	IP44/54
24152	2P+T	4h	100-130 V	Yellow	Brass	IP66/67
24153	3P+T	4h	100-130 V	Yellow	Brass	IP66/67
24155	3P+N+T	4h	100-130 V	Yellow	Brass	IP66/67
24192	2P+T	4h	100-130 V	Yellow	Brass	IP66/67
24193	3P+T	4h	100-130 V	Yellow	Brass	IP66/67
24199	3P+N+T	4h	100-130 V	Yellow	Brass	IP66/67
24253	2P+T	6h	200-250 V	Blue	Brass	IP66/67
24254	3P+T	9h	200-250 V	Blue	Brass	IP66/67
24255	3P+N+T	9h	200-250 V	Blue	Brass	IP66/67
24292	2P+T	6h	200-250 V	Blue	Brass	IP66/67
24293	3P+T	9h	200-250 V	Blue	Brass	IP66/67
24296	3P+N+T	9h	200-250 V	Blue	Brass	IP66/67
24352	3P+T	6h	380-415 V	Red	Brass	IP66/67
24353	3P+N+T	6h	380-415 V	Red	Brass	IP66/67
24355	2P+T	9h	380-415 V	Red	Brass	IP66/67
24392	3P+T	6h	380-415 V	Red	Brass	IP66/67
24393	3P+N+T	6h	380-415 V	Red	Brass	IP66/67
24408	2P+T	9h	380-415 V	Red	Brass	IP66/67
24452	3P+T	7h	480-500 V	Black	Brass	IP66/67
24453	3P+N+T	7h	480-500 V	Black	Brass	IP66/67
24455	2P+T	7h	480-500 V	Black	Brass	IP66/67
24488	2P+T	7h	480-500 V	Black	Brass	IP66/67
24492	3P+T	7h	480-500 V	Black	Brass	IP66/67
24493	3P+N+T	7h	480-500 V	Black	Brass	IP66/67

View all 61 SKUs →

SKU	Pin Configuration	Hour Position	Voltage	Color	Material of Contacts	Ingress Rating
24194	2P+T	4h	100-130 V	Yellow	Brass	IP66/67
24195	3P+T	4h	100-130 V	Yellow	Brass	IP66/67
24256	3P+T	9h	200-250 V	Blue	Brass	IP66/67
24257	3P+N+T	9h	200-250 V	Blue	Brass	IP66/67
24259	2P+T	6h	200-250 V	Blue	Brass	IP66/67
24394	3P+T	6h	380-415 V	Red	Brass	IP66/67
24395	3P+N+T	6h	380-415 V	Red	Brass	IP66/67
24409	2P+T	9h	380-415 V	Red	Brass	IP66/67
24486	2P+T	7h	480-500 V	Black	Brass	IP66/67
24496	3P+T	7h	480-500 V	Black	Brass	IP66/67
24497	3P+N+T	7h	480-500 V	Black	Brass	IP66/67
24512	3P+N+T	4h	100-130 V	Yellow	Brass	IP66/67

View all 12 SKUs →

SKU	Pin Configuration	Hour Position	Voltage	Color	Material of Contacts	Ingress Rating
24196	2P+T	4h	100-130 V	Yellow	Brass	IP66/67
24197	3P+T	4h	100-130 V	Yellow	Brass	IP66/67
24213	3P+N+T	4h	100-130 V	Yellow	Brass	IP66/67
24258	3P+T	9h	200-250 V	Blue	Brass	IP66/67
24261	2P+T	6h	200-250 V	Blue	Brass	IP66/67
24297	3P+N+T	9h	200-250 V	Blue	Brass	IP66/67
24396	3P+T	6h	380-415 V	Red	Brass	IP66/67
24397	3P+N+T	6h	380-415 V	Red	Brass	IP66/67
24487	2P+T	7h	480-500 V	Black	Brass	IP66/67
24489	2P+T	9h	380-415 V	Red	Brass	IP66/67
24498	3P+T	7h	480-500 V	Black	Brass	IP66/67
24499	3P+N+T	7h	480-500 V	Black	Brass	IP66/67

View all 12 SKUs →

Connection System

Screw connection

Material of Contacts

Nickel-plated brass

MATERIAL BASE

PA6

Ingress Rating

IP66/67

CERTIFICATE

VDE; CE; Low Voltage Directive 2014/35/EU; RoHS 2011/65/EU

STANDARDS

IEC/EN 60309-1; IEC/EN 60309-2

IMPACT RESISTANCE

IK08
