SpeedPro Mobile Plug

IP55 Mini junction Box; frame and base in ABS, Impact resistance IK08, UV protection, Halogen-free, easy and fast installation.

Categories: Mobile, Pin and Sleeve

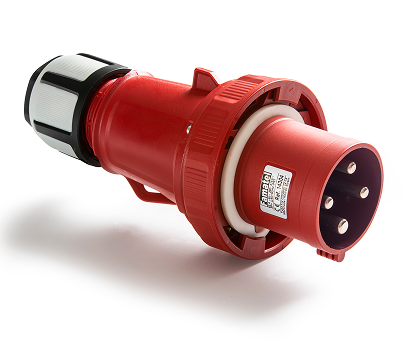

SpeedPro Mobile Plug

Categories Mobile, Pin and Sleeve Tags ABS, Box, Corrosion-proof, Electrical-box, Enclousure, IK08, Insulate, IP55, new_template_2, Outdoors, Press-cover, Rainproof, UV Protection, Waterproof, Watertight, Weatherproof

STATUS

READY FOR SHIPMENT

PRICING

Bulk Quote Only

Engineering Endurance

SpeedPro Mobile Plugs are designed for industrial and marine use. Made out of high-quality ABS and Polyamide 6, they are built to withstand UV, salinity, and other forms of weathering. Configurations match the global standard IEC 60309 (formerly CEE 17).

KEY FEATURES

Polyamide 6 / ABS Material
Screw connection for wiring
IK08 Impact Resistance
-13°F to 104°F Operating Temperature

ENVIRONMENT

Industrial / Commercial / Marine

Pin Configuration

2P+T

3P+T

3P+N+T

Hour Position

Voltage

100-130 V

200-250 V

380-415 V

480-500 V

Color

🔴

🔵

⚫

🟡

Technical Specifications

METRIC & IMPERIAL

Amperage

16 A
32 A
63 A
125 A

SKU	Pin Configuration	Hour Position	Voltage	Color	External Dimensions (in)	Ingress Rating
13101	3P+T	4h	100-130 V	Yellow	A 5.91 x C 4.33 in (B 2.36 in)	IP44/54
14100	2P+T	4h	100-130 V	Yellow	A 5.91 x C 4.33 in (B 2.80 in)	IP66/67
14112	3P+N+T	4h	100-130 V	Yellow	A 5.91 x C 4.33 in (B 3.46 in)	IP66/67
14101	3P+T	4h	100-130 V	Yellow	A 5.91 x C 4.33 in (B 3.07 in)	IP66/67
13200	2P+T	6h	200-250 V	Blue	A 5.91 x C 4.33 in (B 2.20 in)	IP44/54
13202	3P+N+T	9h	200-250 V	Blue	A 5.91 x C 4.33 in (B 2.87 in)	IP44/54
13201	3P+T	9h	200-250 V	Blue	A 5.91 x C 4.33 in (B 2.36 in)	IP44/54
14200	2P+T	6h	200-250 V	Blue	A 5.91 x C 4.33 in (B 2.80 in)	IP66/67
14202	3P+N+T	9h	200-250 V	Blue	A 5.91 x C 4.33 in (B 3.46 in)	IP66/67
14201	3P+T	9h	200-250 V	Blue	A 5.91 x C 4.33 in (B 3.07 in)	IP66/67
13304	2P+T	9h	380-415 V	Red	A 5.91 x C 4.33 in (B 2.20 in)	IP44/54
13301	3P+N+T	6h	380-415 V	Red	A 5.91 x C 4.33 in (B 2.87 in)	IP44/54
13300	3P+T	6h	380-415 V	Red	A 5.91 x C 4.33 in (B 2.36 in)	IP44/54
14309	2P+T	9h	380-415 V	Red	A 5.91 x C 4.33 in (B 2.80 in)	IP66/67
14301	3P+N+T	6h	380-415 V	Red	A 5.91 x C 4.33 in (B 3.46 in)	IP66/67
14300	3P+T	6h	380-415 V	Red	A 5.91 x C 4.33 in (B 3.07 in)	IP66/67
13404	2P+T	7h	480-500 V	Black	A 5.91 x C 4.33 in (B 2.20 in)	IP44/54
13401	3P+N+T	7h	480-500 V	Black	A 5.91 x C 4.33 in (B 2.87 in)	IP44/54
13400	3P+T	7h	480-500 V	Black	A 5.91 x C 4.33 in (B 2.36 in)	IP44/54
14408	2P+T	7h	480-500 V	Black	A 5.91 x C 4.33 in (B 2.80 in)	IP66/67
14401	3P+N+T	7h	480-500 V	Black	A 5.91 x C 4.33 in (B 3.46 in)	IP66/67
14400	3P+T	7h	480-500 V	Black	A 5.91 x C 4.33 in (B 3.07 in)	IP66/67
13410	2P+T	6h	200-250 V	Black	A 5.91 x C 4.33 in (B 2.20 in)	IP44/54

View all 23 SKUs →

SKU	Pin Configuration	Hour Position	Voltage	Color	External Dimensions (in)	Ingress Rating
13102	2P+T	4h	100-130 V	Yellow	A 6.77 x C 4.92 in	IP44/54
13105	3P+N+T	4h	100-130 V	Yellow	A 6.77 x C 4.92 in	IP44/54
13103	3P+T	4h	100-130 V	Yellow	A 6.77 x C 4.92 in	IP44/54
14102	2P+T	4h	100-130 V	Yellow	A 6.77 x C 4.92 in	IP66/67
14113	3P+N+T	4h	100-130 V	Yellow	A 6.77 x C 4.92 in	IP66/67
14103	3P+T	4h	100-130 V	Yellow	A 6.77 x C 4.92 in	IP66/67
13203	2P+T	6h	200-250 V	Blue	A 6.77 x C 4.92 in	IP44/54
13206	3P+N+T	9h	200-250 V	Blue	A 6.77 x C 4.92 in	IP44/54
13204	3P+T	9h	200-250 V	Blue	A 6.77 x C 4.92 in	IP44/54
14203	2P+T	6h	200-250 V	Blue	A 6.77 x C 4.92 in	IP66/67
14210	3P+N+T	9h	200-250 V	Blue	A 6.77 x C 4.92 in	IP66/67
14204	3P+T	9h	200-250 V	Blue	A 6.77 x C 4.92 in	IP66/67
13305	2P+T	9h	380-415 V	Red	A 6.77 x C 4.92 in	IP44/54
13303	3P+N+T	6h	380-415 V	Red	A 6.77 x C 4.92 in	IP44/54
13302	3P+T	6h	380-415 V	Red	A 6.77 x C 4.92 in	IP44/54
14310	2P+T	9h	380-415 V	Red	A 6.77 x C 4.92 in	IP66/67
14303	3P+N+T	6h	380-415 V	Red	A 6.77 x C 4.92 in	IP66/67
14302	3P+T	6h	380-415 V	Red	A 6.77 x C 4.92 in	IP66/67
14308	3P+T	3h	380-440 V	Red	A 6.77 x C 4.92 in	IP66/67
13405	2P+T	7h	480-500 V	Black	A 6.77 x C 4.92 in	IP44/54
13403	3P+N+T	7h	480-500 V	Black	A 6.77 x C 4.92 in	IP44/54
13402	3P+T	7h	480-500 V	Black	A 6.77 x C 4.92 in	IP44/54
14409	2P+T	7h	480-500 V	Black	A 6.77 x C 4.92 in	IP66/67
14403	3P+N+T	7h	480-500 V	Black	A 6.77 x C 4.92 in	IP66/67
14402	3P+T	7h	480-500 V	Black	A 6.77 x C 4.92 in	IP66/67

View all 25 SKUs →

SKU	Pin Configuration	Hour Position	Voltage	Color	External Dimensions (in)	Ingress Rating
14108	2P+T	4h	100-130 V	Yellow	A 10.24 x C 6.89 in	IP66/67
14114	3P+N+T	4h	100-130 V	Yellow	A 10.24 x C 6.89 in	IP66/67
14109	3P+T	4h	100-130 V	Yellow	A 10.24 x C 6.89 in	IP66/67
14205	2P+T	6h	200-250 V	Blue	A 10.24 x C 6.89 in	IP66/67
14209	3P+N+T	9h	200-250 V	Blue	A 10.24 x C 6.89 in	IP66/67
14206	3P+T	9h	200-250 V	Blue	A 10.24 x C 6.89 in	IP66/67
14311	2P+T	9h	380-415 V	Red	A 10.24 x C 6.89 in	IP66/67
14305	3P+N+T	6h	380-415 V	Red	A 10.24 x C 6.89 in	IP66/67
14304	3P+T	6h	380-415 V	Red	A 10.24 x C 6.89 in	IP66/67
14410	2P+T	7h	480-500 V	Black	A 10.24 x C 6.89 in	IP66/67
14405	3P+N+T	7h	480-500 V	Black	A 10.24 x C 6.89 in	IP66/67
14404	3P+T	7h	480-500 V	Black	A 10.24 x C 6.89 in	IP66/67

View all 12 SKUs →

SKU	Pin Configuration	Hour Position	Voltage	Color	External Dimensions (in)	Ingress Rating
14110	2P+T	4h	100-130 V	Yellow	A 11.65 x C 8.31 in (B 5.12 in)	IP66/67
14115	3P+N+T	4h	100-130 V	Yellow	A 11.65 x C 8.31 in (B 5.12 in)	IP66/67
14111	3P+T	4h	100-130 V	Yellow	A 11.65 x C 8.31 in (B 5.12 in)	IP66/67
14212	2P+T	6h	200-250 V	Blue	A 11.65 x C 8.31 in (B 5.12 in)	IP66/67
14211	3P+N+T	9h	200-250 V	Blue	A 11.65 x C 8.31 in (B 5.12 in)	IP66/67
14208	3P+T	9h	200-250 V	Blue	A 11.65 x C 8.31 in (B 5.12 in)	IP66/67
14312	2P+T	9h	380-415 V	Red	A 11.65 x C 8.31 in (B 5.12 in)	IP66/67
14307	3P+N+T	6h	380-415 V	Red	A 11.65 x C 8.31 in (B 5.12 in)	IP66/67
14306	3P+T	6h	380-415 V	Red	A 11.65 x C 8.31 in (B 5.12 in)	IP66/67
14411	2P+T	7h	480-500 V	Black	A 11.65 x C 8.31 in (B 5.12 in)	IP66/67
14407	3P+N+T	7h	480-500 V	Black	A 11.65 x C 8.31 in (B 5.12 in)	IP66/67
14406	3P+T	7h	480-500 V	Black	A 11.65 x C 8.31 in (B 5.12 in)	IP66/67

View all 12 SKUs →

Connection System

Screw connection

Material of Contacts

Nickel-plated brass

MATERIAL BASE

PA6

Ingress Rating

IP66/67

CERTIFICATE

VDE; CE; Low Voltage Directive 2014/35/EU; RoHS 2011/65/EU

STANDARDS

IEC/EN 60309-1; IEC/EN 60309-2

IMPACT RESISTANCE

IK08
