8 Module Enclosure with DIN Rail and Terminals, 8.46 x 9.25 x 4.33 in

IP65 DIN Rail 8 Module weatherproof enclosure box, Frame and Base in ABS, Halogen-free, UV Protected., K08 Rating. For indoor and outdoors.

8 Module Enclosure with DIN Rail and Terminals, 8.46 x 9.25 x 4.33 in

STATUS
READY FOR SHIPMENT
PRICING
Bulk Quote Only
Engineering Endurance

The ACQUA IP65 Circuit Breaker enclosure is designed for multiple applications including integration, automation, control, solar, and others. High quality ABS with UV protection makes this panel reliable in environments where high exposure to dust and splashing water may occur. These units are halogen free and built using high impact material. Each weatherproof enclosure includes the neutral and ground terminal with an easy-to-mount bracket. Door has the option to install a lock for extra safety.

KEY FEATURES

  • Premounted DIN Rail
  • Neutral and Ground Terminal Included
  • IP65
  • 8 Modules

ENVIRONMENT

Indoor / Outdoor / Residential / Commercial / Industrial

Technical Specifications

METRIC & IMPERIAL

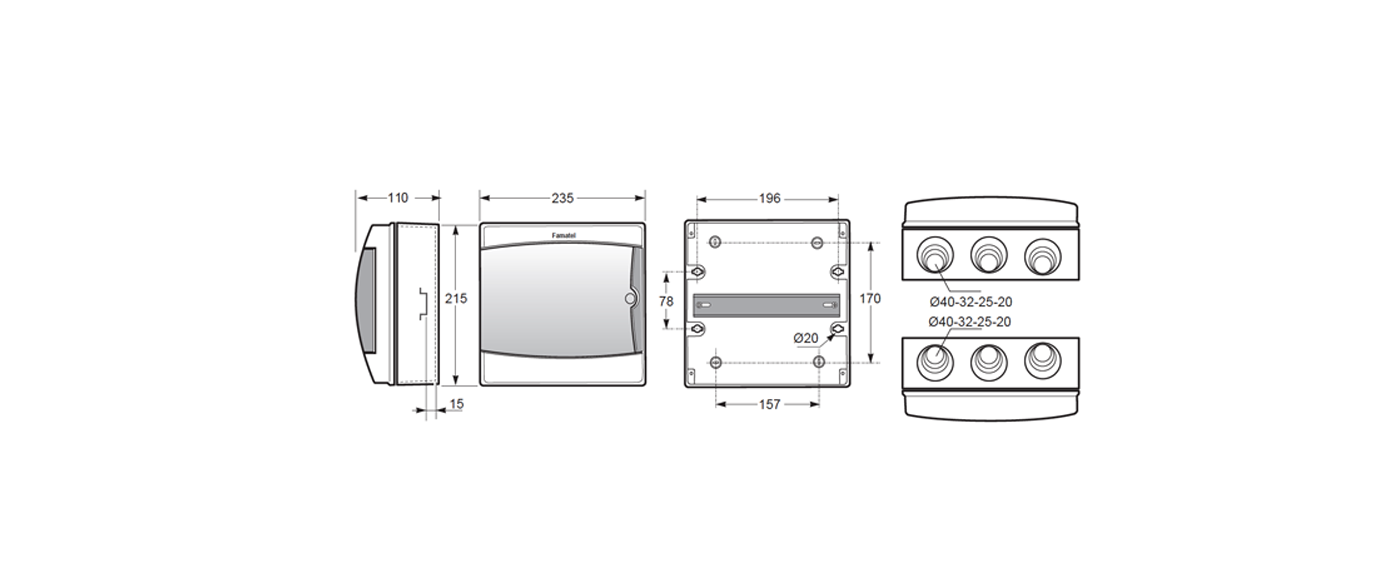

DIMENSIONS (External)

8.46 x 9.25 x 4.33 in

DIMENSIONS (Internal)

8.27 x 8.86 x 2.36 in

MATERIAL BASE

ABS

MATERIAL DOOR

Polycarbonate

PROTECTION LEVEL

IP65 (IEC/EN 60529)

IMPACT RESISTANCE

IK08 (IEC/EN 62262)

STANDARDS

IEC 62208; IEC 61439-1; IEC 61439-3 applicable clauses

CERTIFICATION

CE; Low Voltage Directive 2014/35/EU; REBT 2002
