4 Module Enclosure with DIN Rail and Terminals, 8.46 x 5.51 x 2.17 in

4 Module Enclosure with DIN Rail and Terminals, 8.46 x 5.51 x 2.17 in
4 Module Enclosure with DIN Rail and Terminals, 8.46 x 5.51 x 2.17 in - Image 2

Categories: , , ,

4 Module Enclosure with DIN Rail and Terminals, 8.46 x 5.51 x 2.17 in

SKU 3504-TB Categories , , , Tags , , , , , , , , , ,
  • 4 modules flush-mounted capacity for organized circuit distribution
  • IP40 / IK08 protection with halogen-free construction
  • Terminal blocks for neutral and earth connection included.
STATUS
READY FOR SHIPMENT
PRICING
Bulk Quote Only
REQUEST A QUOTE
Engineering Endurance

The NUOVA IP40 Circuit Breaker enclosure is designed for multiple applications including integration, automation, control, solar, and others. Sizes from 4 – 36 modules with predrilled entries. Each enclosure includes the neutral and ground terminal with a DIN rail and intermediate door.

KEY FEATURES

  • Premounted DIN Rail
  • Neutral and Ground Terminal Included
  • Removable intermediate door
  • 4 Modules

ENVIRONMENT

Indoor / Residential / Commercial

Technical Specifications

METRIC & IMPERIAL

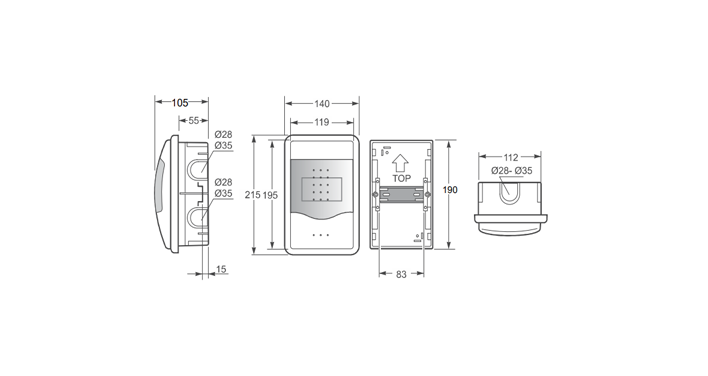

DIMENSIONS (External)

8.46 x 5.51 x 2.17 in

DIMENSIONS (Internal)

7.48 x 4.33 x 2.17 in

MATERIAL BASE

ABS

MATERIAL DOOR

Polycarbonate

PROTECTION LEVEL

IP40

IMPACT RESISTANCE

IK08

STANDARDS

EN 60670-1; EN 60670-24; IEC 61439-1; IEC 61439-3; IEC 62208

CERTIFICATION

CE; Low Voltage Directive 2014/35/EU; REBT 2002

Technical Resources

Access complete data sheets and certifications for project documentation.

DATA SHEET (PDF)
CE CERTIFICATION
